LEGEND

ABC/7 edge

Felt wheel

Resin diamond cup wheel

Metal diamond cup wheel

Peripheral diamond wheel

Peripheral polishing wheel

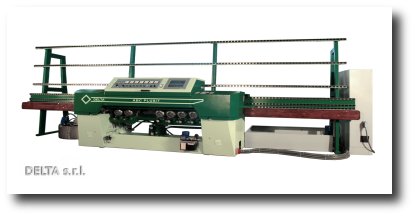

Monolithic structure body for medium bevelling production.
The machine is supplied with a peripheral diamond wheel D175 to execute a round profile on the remaining thickness of the edge ( untill max.8 mm.) and an additional peripheral wheel for round edge polishing.
Fine quality bevel can be achieved from 3° up to 45°.
High precision motorspindles guarantee any diamond wheel vibration effects during the bevel grinding.
Front part of the machine moves up and down to execute small glass pieces.
Minimum glass size allowed is 80 x 80 mm.

ABC/7 edge







3°-45°














Max bevel width

Glass thickness

Min glass size

Speed

Bevel angle

Electronic control

Electrical power

Weight

Lenght/Height/Width

45 mm

3-24 mm

80x80 mm

0,4-3,7 m/min.

3-45°

Included

14 Kw

2900 Kg

6350x2300x990
