LEGEND

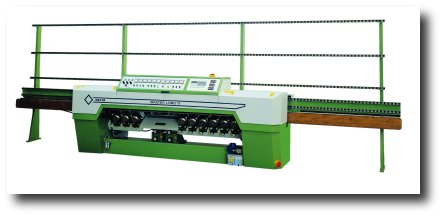

MASTER 11

Felt wheel

Resin diamond cup wheel

Metal diamond cup wheel

Peripheral diamond wheel

Peripheral polishing wheel

Monolithic structure body for high bevelling production.
The machine is supplied with a peripheral diamond wheel D175 to execute a round profile on the remaining thickness of the edge ( untill max.8 mm.) and an additional peripheral wheel for round edge polishing.
Fine quality bevel can be achieved from 3° up to 45°.
High precision motorspindles guarantee any diamond wheel vibration effects during the bevel grinding.
Front part of the machine moves up and down to execute small glass pieces.
Minimum glass size allowed is 40 x 40 mm.

MASTER11









3°-45°














Max bevel width

Glass thickness

Min.glass size

Speed

Bevel angle

Electronic control

Electrical power

Weight

Lenght/Height/Width

50 mm

3-28 mm

40x40 mm

0,4-3,7 m/min.

3-45°

Included

22 Kw

4200 Kg

7437x2300x1030
