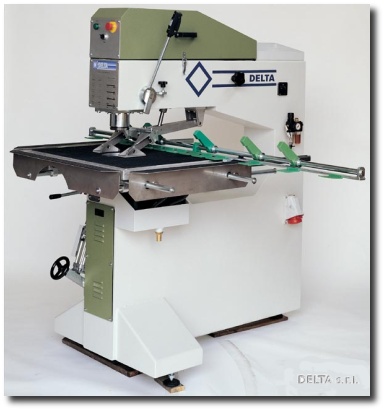

DDC 1000 SEMI

Drilling machine with opposite drilling heads for glass sheet.
The machine is fitted out for the automatic feed of the lower drill and manual feed of the upper one.
Automatic clamping device for the glass sheet during the drilling cycle.
Adjustment facility for depth of drilling on lower head.


Drilling speed

Max glass thickness

Depth throat

Min. diam.

Max diam. (2 drills)

Max diam. (1 drill)

Electrical power

Weight

Lenght/height/width


DDC -1000 semi

3000 RPM

50 mm

1000 mm

4 mm

130 mm

200 mm

2 Kw

320 Kgs

1,62x1,0x1,75
