LEGEND

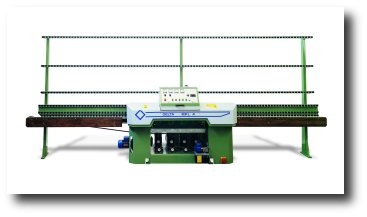

MPL 4

Peripheral diamond wheel

Perifheral polishing wheel

Monolithic structure body for medium grinding production.
Different edge profiles can be grinded according to the profile of peripheral diamond fitted on the machine: pencil edge, flat edge with arrises, O.G., double pencil, triple pencil, bull nose, waterfall, etc.
Minimum glass size allowed is 80 x 80 mm.

MPL/4




Glass thickness

Min glass size

Speed

Electronic control

Electrical power

Weight

Lenght/Width/Height

3-15 mm

80x80 mm

0,4-4 m/min.

Included

9 Kw

1.500Kg

5,2x1,1x2,3
