LEGEND

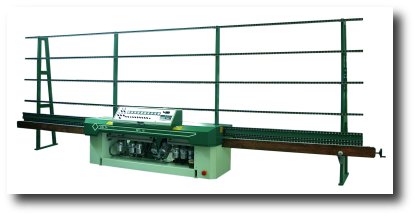

MTL 10

Cerium bond cup wheel

Polishing cup wheel

Feltr wheel

Resindiamond cup wheel

Metallic diamond cup wheel

Monolithic structure body for thick glass sheet grinding.
The machine can execute grinding and polishing with wool felt and liquid cerium of flat edge, medium width front and rear arris.
Minimum glass size allowed is 40 x 40 mm.
Different size racks , inlet and outlet conveyor are available , according to standard or heavy load capacity glass sheets.
The configuration of the machine can be adapted to customer requirements.

MTL/10B







MTL/10C







MTL/10R







Glass thickness

Min glass size

Speed

Electronic control

Electrical power

Weight

Lenght/Width/Height

3-28 mm

40x40 (150x150) mm

0,4-4 m/min.

Included

21 Kw

3.000Kg

7,0x1,1x2,3
