LEGEND

MTL 6

Cerium bond cup wheel

Polishing cup wheel

Metallic diamond cup wheel

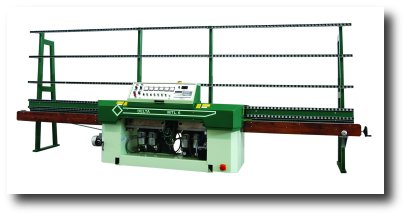

Monolithic structure body for medium thick glass sheet grinding.
The machine can execute grinding and polishing of flat edge, small width front and rear arris.
Minimum glass size allowed is 40 x 40 mm.
Different size racks, inlet and outlet conveyor are available, according to glass sheets size.

MTL/6































Glass thickness

Min glass size

Speed

Electronic control

Electrical power

Weight

Lenght/Width/Height

3-24 mm

40x40 mm

0,4-4 m/min.

Option 1

13 Kw

2000Kg

6,0x1,0x2,3
