LEGEND

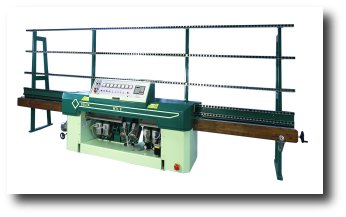

MTL 8

Cerium bond cup wheel

Polishing cup wheel

Metallic diamond cup wheel

Monolithic structure body for medium thick glass sheet grinding.
The machine can execute grinding and polishing of flat edge, medium width front and rear arris.
Minimum glass size allowed is 40 x 40 mm.
Different size racks , inlet and outlet conveyor are available, according to standard or heavy load capacity glass sheets.
The configuration of the machine can be adapted to customer requirements.

MTL/8





























Glass thickness

Min glass size

Speed

Electronic control

Electrical power

Weight

Lenght/Width/Height

3-24 mm

40x40 mm

0,4-4 m/min.

Included

17 Kw

2600Kg

6,5x1,0x2,3
