LEGEND

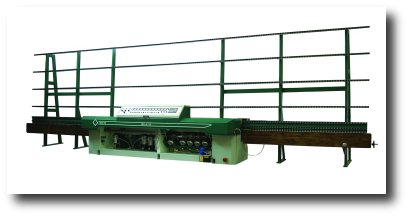

MTLV 12

Polishing cup wheel

Felt wheel

Resin diamond cup wheel

Metal diamond cup wheel

Monolithic structure body for thick glass sheet grinding.
The machine can execute in the same pass grinding and polishing of flat edge , front mitre , rear and small width front arris.
It isn't necessary any wheel bed motorspindles adjustment while changing the mitre inclination from 0° up to 47°
Different size racks , inlet and outlet conveyor are available , according to standard or heavy load capacity glass sheets.
The configuration of the machine can be adapted to customer requirements.

MTLV/12C









0°-47°
















MTLV/12R









0°-47°














Glass thickness

Min glass size

Speed

Angle

Electronic control

Electrical power

Weight

Lenght/Width/Height

3-28 mm

70x70 (150x150) mm

0,4-4 m/min.

0°- 47°

Included

21 Kw

4.000Kg

7,95x1,17x2,3
