LEGEND

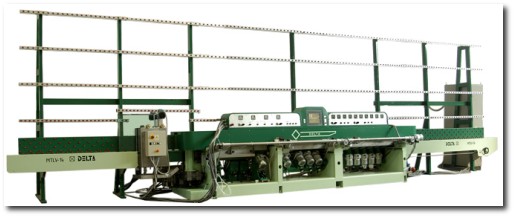

MTLV 14

Monolithic structure body for big and thick glass sheet grinding.
The main feature of the machine is the double wheel bed with different motorspindles number : both of them can be independently tilted and the flat edge or front arris are processed by one or the other wheel bed according to desired removal.
The machine can execute in the same pass grinding and polishing of flat edge , front mitre , rear and front arris.
Due to the double wheel bed it is even possible to grind a double mitre , with different inclination , in the same pass.
It isn't necessary any wheel bed motorspindles adjustment while changing the mitre inclination from 0° up to 47°
Different size racks , inlet and outlet conveyor are available , according to standard or heavy load capacity glass sheets.
The configuration of the machine can be adapted to customer requirements.
