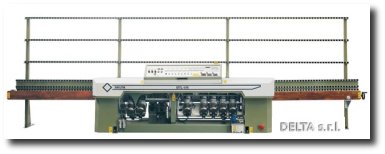

MTLV 9

Monolithic structure body for thick glass sheet grinding. Different kind of grinding are allowed :
a) Setting wheel bed in vertical position , flat edge grinding and polishing is processed ; in the last section of the machine medium with front and rear arris are executed.
b) Setting wheel bed in tilted position , mitre grinding and polishing is processed ; in the last section of the machine medium with front and rear arris are executed.
It isn't necessary any wheel bed motorspindles adjustment while changing the mitre inclination from 0° up to 47°
Minimum glass size allowed is 70 x 70 mm.
Different size racks , inlet and outlet conveyor are available , according to standard or heavy load capacity glass sheets.
The configuration of the machine can be adapted to customer requirements.
