LEGEND

WAVE Compact

Felth wheel

Resin diamond cup wheel

Metal diamond cup wheel

Peripheral diamond wheel

The greatest technological innnovation in the 100 years history of the bevelling industry.
Monolithic structure body for medium bevelling production.
The machine is supplied with a peripheral diamond wheel D175 to execute a round profile on the remaining thickness of the edge ( untill max.8 mm.).
WAVE bevelling machines series is conceived for grinding different size of wave bevel in order to create an unlimited quantity of bevel figures that was unthinkable till today.
Different wave lenght can be executed : 29 , 36 , 48 , 73 , 145 mm.
Fine quality bevel can be achieved from 3° up to 45°.

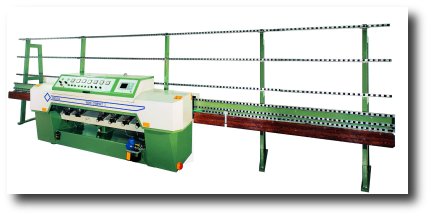

WAVE compact










3°-45°














Max bevel width

Glass thickness

Min glass size

Speed

Bevel angle

Electronic control

Electrical power

Weight

Lenght/Height/Width

30 mm

3-19 mm

200x200 mm

0,4–1,5 m/min.

3-45°

Included

24 Kw

3.800 Kgs

8,0x1,8x2,4
