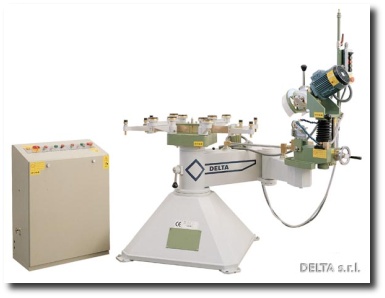

BEV 2500

Manual machine to grind the bevel and the edge of shaped glass.
Different edge profiles can be grinded according to the profile of peripheral diamond fitted on the machine: pencil edge, flat edge with arrises, O.G., double pencil, triple pencil, bull nose, waterfall, etc.
The edge polishing can be operated with wool felt and liquid cerium.
The edge grinding and polishing can be processed in automatic mode in case of round shaped glass.
Bevel can be grinded tilting diamond wheel motor till to 45° max.
Different solution are available according to maximum or minimum glass size to be processed.

	Round glass sheet max.dim,	Glass sheet min.dim. (standard)	Glass sheet min.dim. (small pieces plateau)	Max bevel width	Bevel angle	Thickness	Electrical power	Weight

BEV 2500	D 2500 mm	D 500 mm	D 100 mm	40 mm/50 opt	0° - 45°	3 – 25mm	2,5 Kw	750 Kgs
POL 2500	D 2500 mm	D 500 mm	D 100 mm	40 mm/50 opt	0° - 45°	3 – 25mm	2,5 Kw	750 Kgs
