STRAIGHT LINE BEVELING MACHINES FOR STRAIGHT BEVEL: ABC and MASTER series

[MASTER13 ] [ MASTER11] [ABC/7plus] [ABC/7edge] [ABC/5]

The range of bevelling machines includes machines from 5 up to 13 motorspindles, available in CN and CNC version, with the purpose o satisfy every workmanship demands.

ABC bevelling machines series is conceived for small and medium production, with low maintenance costs but taking care to high bevel quality.

MASTER bevelling machines series is conceived for high production ; there are available machines grinding a round polished edge or a flat polished edge with front and rear arris.

All the bevelling machines can be supplied with CN or 12” color graphic monitor CNC computer.

STRAIGHT LINE BEVELLING MACHINES FOR STRAIGHT BEVEL AND WAVE: WAVE series

[WAVE plus ] [WAVE compact]

The greatest technological innnovation in the 100 years history of the bevelling industry.

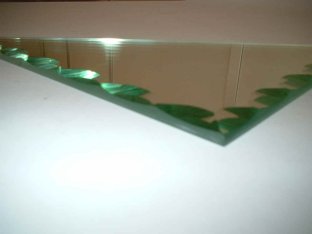

WAVE bevelling machines series is conceived for grinding different size of wave bevel combined with high quality straight bevel.

Combination of straight and wave bevel allows to create an unlimited quantity of bevel figures that was unthinkable till today.

VARIABLE ANGLE STRAIGHT LINE EDGING MACHINES: MTLV series

[MTLV17] [MTLV14] [MTLV12] [MTLV9] [MTLV6]

The range includes machines from 4 up to 17 motorspindles, available in CN and CNC version, to grind and polish front and rear arris 45°, mitre from 0° to 47° and flat edge profile .

In order to satisfy any workmanship requirements, different machine configurations are available :polishing or resin bond diamond wheels, cerium oxide or wool felt wheels with liquid cerium.

Different size of rack, inlet and outlet conveyor are available, according to standard or heavy load capacity glass sheets.

CUP WHEELS STRAIGHT LINE EDGING MACHINES: MTL series

[MTL/12] [MTL/10] [MTL/8] [MTL/6] [ MTL/4]

The range includes machines from 4 up to 12 motorspindles, available in CN and CNC version, to grind and polish front, rear arris 45° and flat edge profile.

In order to satisfy any workmanship requirements, different machine configurations are available: polishing or resin bond diamond wheels, cerium oxide or wool felt wheels with liquid cerium.

Different size of rack, inlet and outlet conveyor are available, according to standard or heavy load capacity glass sheets.

PERIPHERAL WHEELS STRAIGHT LINE EDGING MACHINES: MPL series

[MPL/8] [MPL/6] [MPL/4]

The range includes machines from 4 up to 8 motorspindles to grind and polish the glass edge.

Different edge profiles can be grinded according to the profile of peripheral diamond fitted on the machine: pencil edge, flat edge with arrises , O.G. , double pencil , triple pencil , bull nose , waterfall , etc.

The edge polishing, processed in automatic mode by means of a computer, can be operated with wool felt and with liquid cerium.

SHAPED EDGING BEVELLING MACHINE: BEV series

[BEV]

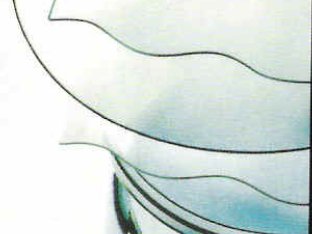

The range includes one manual machine to grind the bevel and the edge of shaped glass.

Different edge profiles can be grinded according to the profile of peripheral diamond fitted on the machine: pencil edge ,flat edge with arrises, O.G., double pencil, triple pencil, bull nose, waterfall, etc.

The edge polishing can be operated with wool felt and liquid cerium and processed in automatic mode in case of round shaped glass. Bevel can be grinded tilting diamond wheel motor till to 45° max.

Different solution are available according to maximum or minimum glass size to be processed.

DRILLING MACHINES: DDC series

[DDC 670 concave ] [DDC 1000 semi ] [DDC 1065 auto] [VDM 750]

The range includes different semi or automatic drilling machine with opposite drilling heads.

Semiautomatic model DDC 1000 is fitted out for the automatic feed of the lower drill and manual feed of the upper one.

Automatic model DDC 1065 is fitted out for the automatic feed of both drills, automatic ejection of glass cores and automatic adjustment of drill rotation speed while setting holes diameter.

All the drilling machines are equipped with automatic clamping device for the glass sheet during the drilling cycle.
